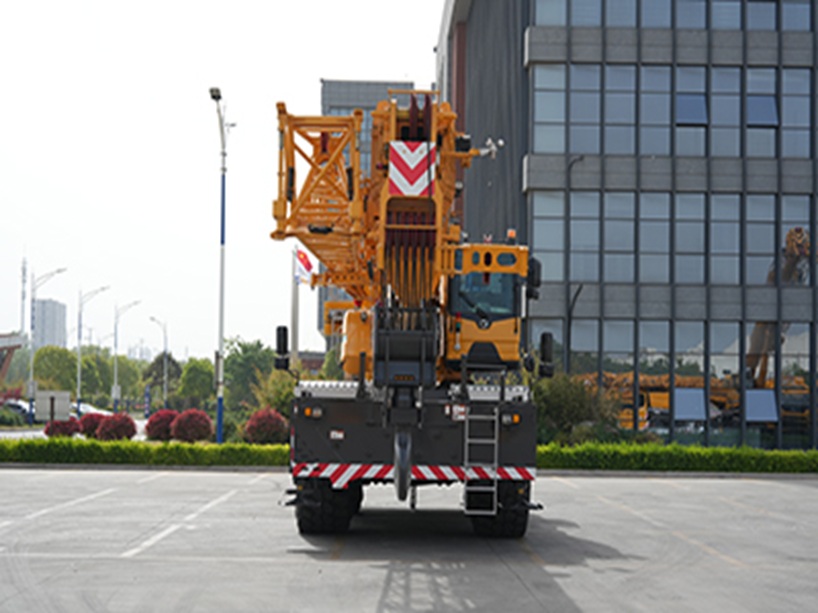

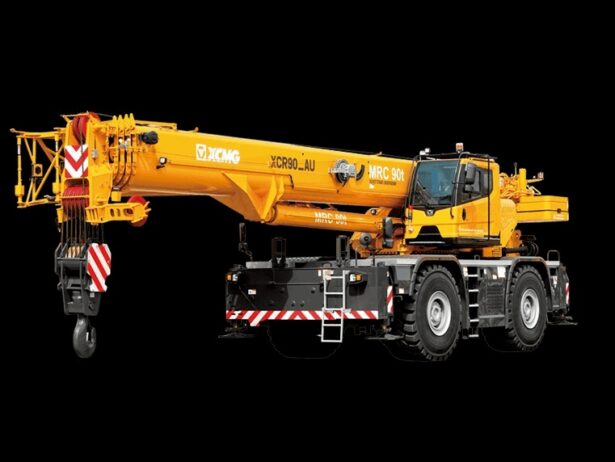

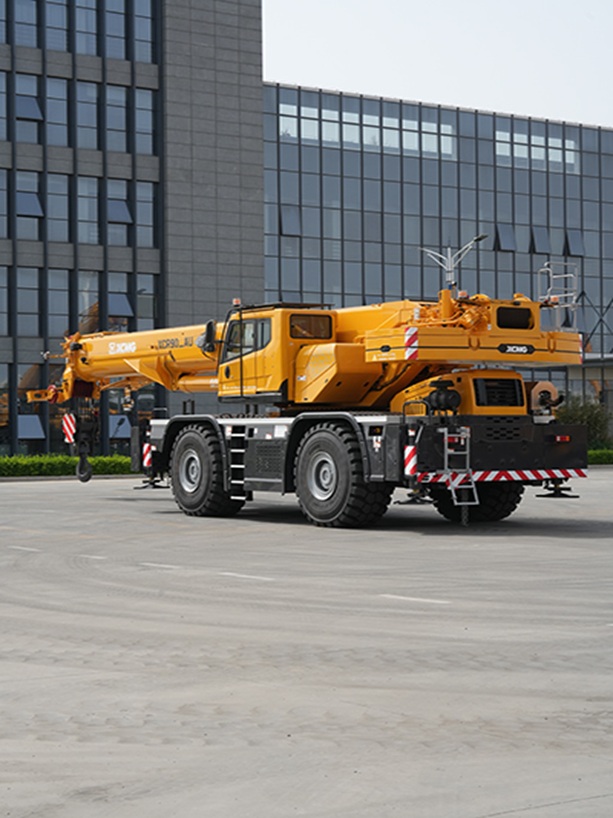

Boom: The boom consists of one base boom section and four telescopic sections with U-shaped cross-section.
Dual-cylinder wire-rope-type telescoping mechanism is adopted. 6 sheaves on boom head are standard.
Boom length: 12.4 m~48 m.

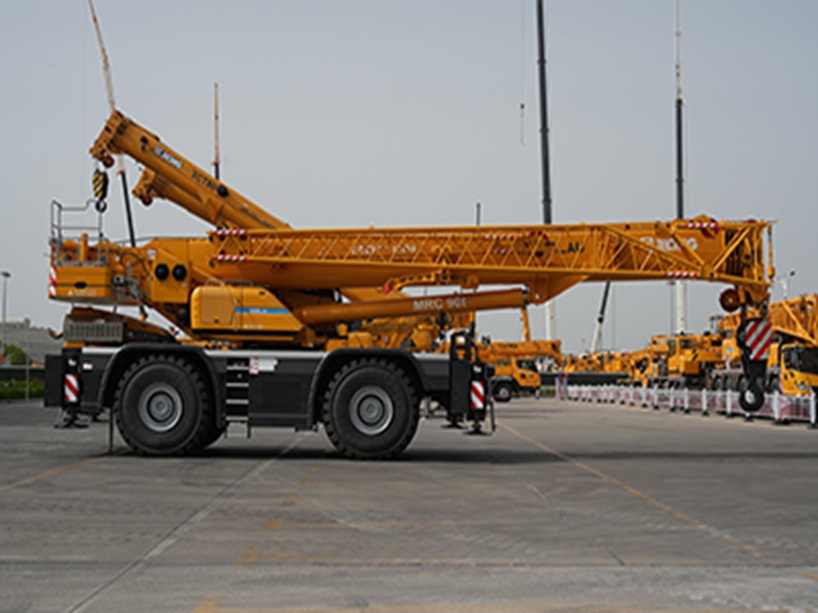

Jib: 2-section, lattice structure, with 0°, 15°and 30° jib offset angles available, stowed at the side of the boom.
The jib is also equipped with cylinder assisted unfolding and stowing function.
Jib length: 10.5 m~17.5 m.
| Capacity | 90T |
|---|
